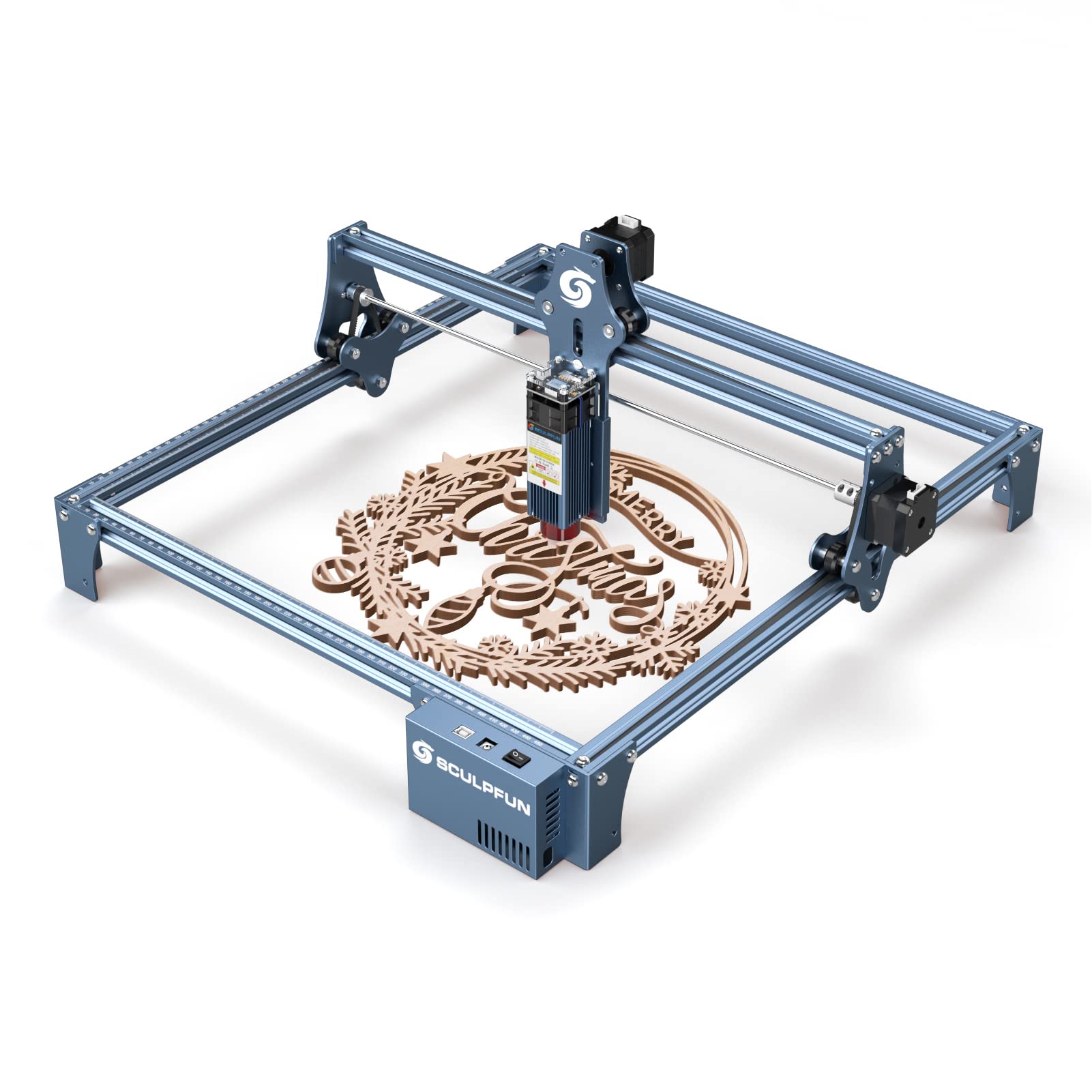

Sculpfun S9 Laser Engraver & Cutter - 410x420mm Large Work Area, Ultra-Thin Laser Beam, High Precision for Wood & Acrylic - Full Metal CNC Machine for DIY Crafts, Sign Making & Home Decor Projects
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:21 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:72938860
Product Description
Specifications: Model: SCULPFUN S9 Engraving Size: 410*420mm Engraving Materials: Wood, paper, cardboard, plastic, white, PCB board, aluminum oxide, 304 Stainless steel, ceramic, dark stone Cutting Material: Wood, acrylic, cardboard, fabric, bamboo, plastic board, KT board Machine Electricity Power: 30W (It has nothing to do with cutting or engraving performance, just electricity consumes) Diode Laser Power: 5.5-6W Laser Wave Length 455±5nm Engraving Accuracy: 0.01mm Focusing Method: Fixed focus laser + sliding device Laser Protective Cover: The light filter cover on the laser protects the user's eyes and prevents animals grabing the laser spot. Operating Software: Compatible with LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, etc. Operation System: Compatible with Apple system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats. Data Transmission Method: USB connection Power Supply: International universal standard power input: 100-240V AC, 50/60HZ output: 12V 5A Machine Weight: 3.0kg/ 6.61lbs Package Weight: 4.4kg/ 9.7lbs Package Size: 59 x 34 x 12cm/23.3 x 13.3 x 4.7in Package List: 1× X axis assembly 2× X shaft 2× Y shaft 2 x Belt 1× Control box module set 3× Support feet 1× Laser module set 1× Power Supply 1× USB cable 1× Tool Kit 1× Goggles 1× 10x10cm wood chip 3mm thickness 1× 10x10cm wood chip 10mm thickness 1× A4 size steel desktop protection pad
Product Features
90W Effect Laser Beam Shaping Technology: S9 uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.06mm sharp laser focus, with super cutting penetration and precision, can cut up to 15mm thick wood, 10mm acrylic, carve ceramics and stainless steel, almost beyond the effect of 90W CO2 laser.
Fast Focusing Design: Combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete the focusing. This makes it very easy to use.
Solid & Easy Assembly Structure: The full-metal structure design makes the machine work stably, and improves the engraving accuracy. The assembly can be completed in 10-20 minutes. The structural frame is very durable and available to upgrade. During use,
Wide Compatibility: The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows system, Apple system (LightBurn), and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.
Safe Design: The laser filter cover filters 98% of the ultraviolet light to the eyes. And comes with a A4 size steel pad to protect the table from laser damage. Isolate fire hazards.
